A leak down test is one of the most precise diagnostic tools for understanding the internal condition of your engine. Whether you’re chasing performance issues, suspecting compression loss, or simply checking for wear and tear, this test can reveal everything from bad valves to damaged piston rings. While a compression test offers a snapshot of your engine’s pressure-holding ability, a leak down test goes deeper, identifying where that pressure is escaping. If you’re a DIY mechanic, performance enthusiast, or professional technician, mastering the leak down test is essential to maintaining engine performance and longevity.
In this comprehensive guide, we’ll explore how the leak down test works, what tools you need, how to interpret the results, and the common causes of leakage. With five in-depth sections and ten frequently asked questions, you’ll walk away confident and well-informed. Let’s dive into the science of pinpointing engine problems—one cylinder at a time.
What Is a Leak Down Test and How Does It Work?
A leak down test, also called a cylinder leak-down test, is a diagnostic procedure used to evaluate the condition of internal combustion engines. It helps determine the percentage of air escaping from a cylinder when compressed air is introduced. Unlike a compression test that measures pressure, a leak down test measures loss of pressure, giving a clearer picture of internal sealing efficiency. Mechanics rely on it to identify problems like burnt valves, worn piston rings, or head gasket failures.
The process involves positioning the piston at top dead center (TDC) of the compression stroke, sealing the cylinder, and applying regulated air pressure. The test gauges how much air escapes and through which components—valves, rings, or gaskets—by listening for telltale sounds from the intake, exhaust, or crankcase. This makes the leak down test a powerful tool for pre-purchase inspections, performance tuning, and preventative maintenance.
Why a Leak Down Test Is Better Than a Compression Test
While both the leak down test and compression test assess engine health, the leak down test offers more detailed insight. A compression test merely records how much pressure the cylinder can build under cranking conditions. If the numbers are low, you know there’s a problem—but not necessarily where or why. That’s where the leak down test shines: it pinpoints the source of pressure loss, making it a superior diagnostic choice.
In high-performance or aging engines, early signs of wear can go unnoticed during a compression test. A leak down test helps uncover minor valve seating issues, hairline head gasket cracks, or early piston ring wear. The test doesn’t rely on engine rotation or battery strength and works even when the engine can’t start, making it ideal for in-depth diagnostics on dead engines or project cars.
Tools You Need for a Leak Down Test

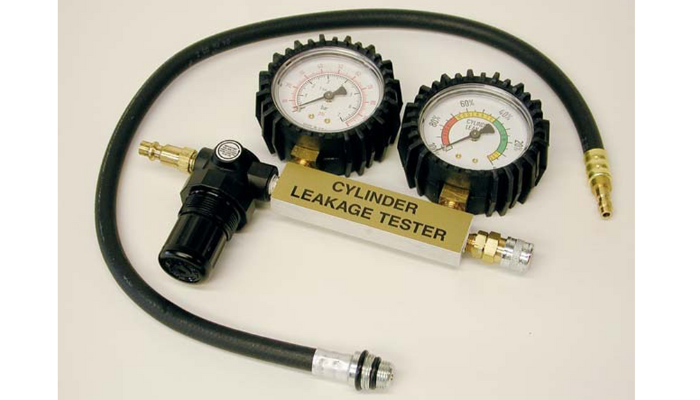

Performing a leak down test requires some specialized tools, but it’s relatively affordable and easy for DIYers. The most crucial piece is the leak down tester itself, which consists of a dual-gauge regulator that compares input air pressure to retained pressure in the cylinder. It usually comes with adapters for various spark plug hole sizes, ensuring compatibility with most gasoline engines.
You’ll also need a reliable air compressor capable of delivering at least 100 PSI, a wrench or ratchet to rotate the engine manually, and access to each spark plug. Optional tools like a remote starter switch or a piston stop tool can make the process smoother. Don’t forget safety gear—pressurized air systems can be hazardous if mishandled. For accuracy, invest in a quality tester with well-calibrated gauges and leak-resistant fittings.
Step-by-Step Guide to Performing a Leak Down Test
To begin a leak down test, first remove all spark plugs to relieve engine compression and make turning the crankshaft easier. Bring the piston of the cylinder you want to test to top dead center (TDC) on the compression stroke—this ensures that all valves are closed, allowing accurate air retention measurement. You can find TDC using a piston stop tool or by watching the movement of the rocker arms or cam lobes.
Connect the tester to the cylinder via the spark plug hole and slowly introduce compressed air. Read the gauge to determine the percentage of leakage. Under 10% is excellent, 10–20% is acceptable, and anything above 20% indicates a problem. Listen closely for air escaping: hissing from the intake means an intake valve leak, while exhaust noise indicates a faulty exhaust valve. Air from the oil filler cap suggests worn rings or cylinder walls, and bubbles in the coolant imply a blown head gasket
Interpreting Results and Diagnosing Common Problems
The real value of a leak down test lies in interpreting the results correctly. A minor leak in all cylinders may be normal due to ring gap tolerances. However, if one cylinder shows significantly higher leakage than others, it signals an isolated problem. Valve leaks often cause poor idling or loss of power. Ring wear, common in high-mileage engines, usually leads to oil consumption and blue smoke. A head gasket leak often accompanies overheating and coolant loss.
Each sound tells a different story. A hiss from the throttle body suggests an intake valve that’s not sealing properly. Exhaust pipe noise? Likely an exhaust valve issue. Air bubbles in the radiator point to combustion gases entering the coolant system, a hallmark of a failed head gasket. With practice, you’ll learn to distinguish these signs quickly and accurately, making the leak down test an invaluable tool in your diagnostic arsenal.
Conclusion
The leak down test is one of the most powerful diagnostic procedures in any mechanic’s toolkit. By providing detailed insights into the internal health of your engine, it helps detect problems early, avoid costly repairs, and fine-tune performance. Whether you’re troubleshooting power loss, preparing for a rebuild, or simply staying ahead of wear and tear, a well-executed leak down test reveals more than a compression test ever could.
Don’t overlook the importance of correct test procedures, quality tools, and careful interpretation. With a bit of patience and know-how, you can uncover what’s really happening inside your engine—one cylinder at a time.
Frequently Asked Questions (FAQs)
1. What is a leak down test used for?
A leak down test is used to identify internal engine problems like valve leaks, worn piston rings, and head gasket failures.
2. How is a leak down test different from a compression test?
A compression test measures how much pressure a cylinder can hold, while a leak down test measures how much pressure escapes and from where.
3. What is a good leak down test result?
A healthy cylinder usually has under 10% leakage. Up to 20% may be acceptable, but anything above that suggests a problem.
4. Can I do a leak down test at home?
Yes, with the right tools (leak down tester, air compressor, and basic hand tools), most DIY mechanics can perform the test at home.
5. What does air escaping from the intake mean during the test?
This typically means the intake valve is leaking and not sealing properly.
6. How do I find top dead center (TDC) for a leak down test?
Rotate the engine manually and look for when both valves are closed, or use a piston stop tool or timing marks to locate TDC on the compression stroke.
7. What does hissing from the exhaust during the test indicate?
It usually means there’s an issue with the exhaust valve, such as a burnt or poorly seated valve.
8. Can a leak down test detect a blown head gasket?
Yes, especially if air bubbles appear in the radiator or coolant reservoir during the test.
9. Is a leak down test safe for the engine?
Absolutely, as long as you keep the piston at TDC and don’t over-pressurize the cylinder, it’s a safe and effective procedure.
10. How often should a leak down test be performed?
For high-performance or aging engines, performing a leak down test annually or whenever you notice performance changes is a good practice.
